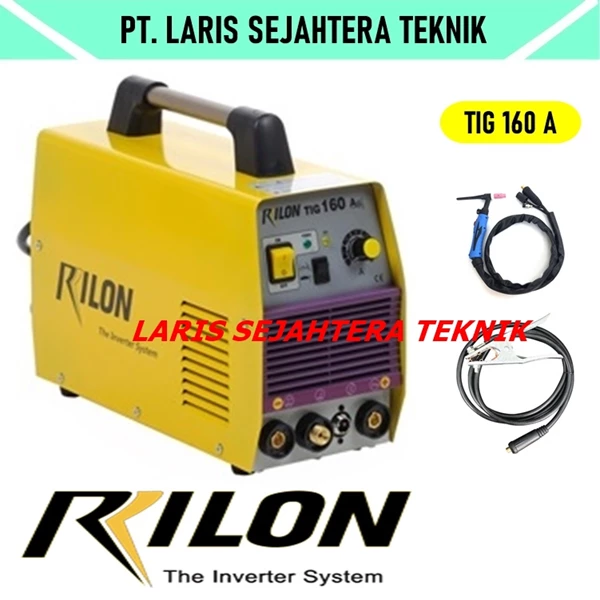

Mesin Las Argon Tig 160S

Rp. 200

Last Updated

16 Mar 2023

Minimum Order

1 unit

Specification of Mesin Las Argon Tig 160S

PARAMETER	TIG160S
INPUT VOLTAGE (V)	AC 220V±15%
FREQUENCY (HZ)	50/60
RATED INPUT (A)	20
NO-LOAD VOLTAGE (V)	40
OUTPUT CURRENT RANGE (A)	10-160
RATED OUTPUT VOLTAGE (V)	16.4
DUTY CYCLE (%)	60
NO-LOAD LOSS (W)	40
ARCING WAY	HF
EFFICIENCY (%)	80
POWER FACTOR	0.73
INSULATION GRADE	F
HOUSING PROTECTION GRADE	IP21
NET WEIGHT (KG)	9
DIMENSION (MM)	371X153X232
APPLICATION BASE FOR CARBON STEEL, STAINLESS STEEL, LOW-ALLOY STEEL
PLATE THICKNESS (MM)	0.3-3.0
CURRENT RANGE (A)	5-160
